p4m/M Long Rollout of Prediction for the Shallow Water System
On the left-hand side is a comparison of the p4m/M rollout for surface disturbance (ζ) with the reference.
The right-hand side shows the accuracy scores (NRMSE-ζ and correlation) over time.
Abstract
Neural PDE surrogates can improve the cost-accuracy tradeoff of classical solvers, but often generalize
poorly to new initial conditions and accumulate errors over time. Physical and symmetry constraints have
shown promise in closing this performance gap, but existing techniques for imposing these inductive
biases are incompatible with the staggered grids commonly used in computational fluid dynamics.
Here we introduce novel input and output layers that respect physical laws and symmetries on the staggered
grids, and for the first time systematically investigate how these constraints, individually
and in combination, affect the accuracy of PDE surrogates. We focus on two challenging problems:
shallow water equations with closed boundaries and decaying incompressible turbulence. Compared to
strong baselines, symmetries and physical constraints consistently improve performance across tasks,
architectures, autoregressive prediction steps, accuracy measures, and network sizes. Symmetries are more
effective than physical constraints, but surrogates with both performed best, even compared to baselines
with data augmentation or pushforward training, while themselves benefitting from the pushforward trick.
Doubly-constrained surrogates also generalize better to initial conditions and durations beyond the range
of the training data.
Neural PDE Surrogates
The present study focuses on time-dependent variable fields w(t, x) for a fluid system.
The general governing partial differential equations (PDEs) for the system can be written as follows:
wt= F(t, x, w, ∇w, ∇2w, . . .)
with initial conditions and boundary conditions, where t and x are expressed in terms of time and space,

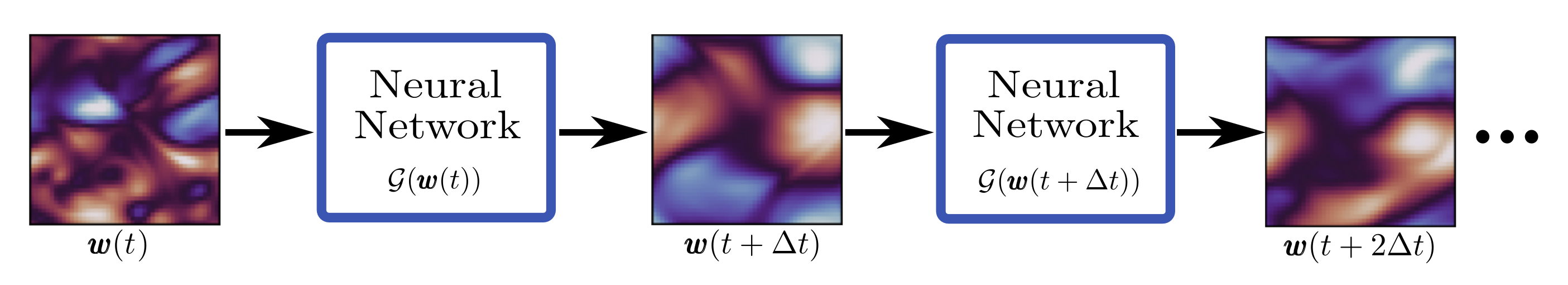

respectively. We aim to train neural networks to predict the time evolution of a system of PDEs.
Thus, the dynamical system can be written:
as:
w(t+∆t, ·) = G[w(t, ·)]
where G is an update operator of neural network. To provide training data and evaluate performance we
use a reference solution generated by a numerical solver with space- and time-discretized variable fields.
Symmetry- and Physics-Constrained Neural Surrogates
In this work, we assess the separate and combined benefits of symmetries and conservation laws for
neural PDE surrogates. To achieve this, we construct equivariant input layers that support
staggered grids, as well as output layers enforcing both equivariance and conservation laws.

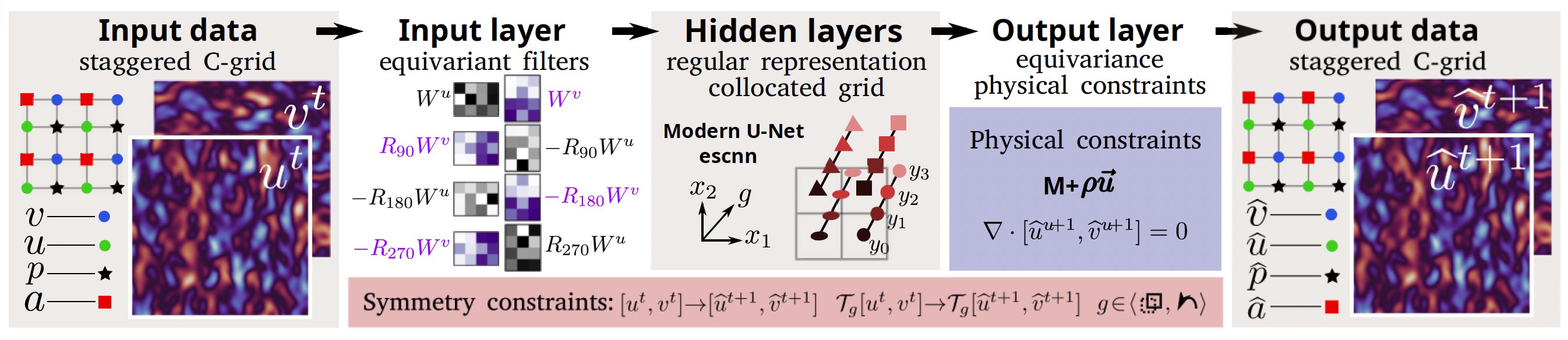

Symmetry- and physics-constrained neural surrogate for
incompressible flow on a staggered grid. A rotation-equivariant input layer maps velocities onto
an unstaggered regular representation,
hidden layers employ steerable convolutions and the equivariant output layer enforces conservation
laws on mass and momentum as it maps to staggered velocities.
Figure demonstrates our overall framework for constructing equivariant, conservative neural surrogates.
As an illustrative example, we show the incompressible Navier Stokes equations, with equivariance in
translation and rotation, momentum conservation and a divergence-free condition (equivalent to mass conservation).
Input data defined on staggered grids are mapped through novel equivariant input
layers to a set of convolutional output channels defined at grid cell centers. Each internal activations
consist of regular representations: groups of channels indexed by G on
which G acts by transforming each spatial field and by permuting the channels according to the group action.
Essentially, regular representations are real-valued functions of the discrete symmetry
group G. This formulation allows us to use the preexisting library
escnn for all internal linear
transformations between hidden layers. Finally, we employ
novel output layers to map the regular representation back
to the staggered grid while enforcing conservation laws as
hard constraints.
In the following section, the emphasis will be placed on the presentation of figures that have been selected
on the basis of their relevance to the subject of symmetry in the input layer of networks and entire networks.

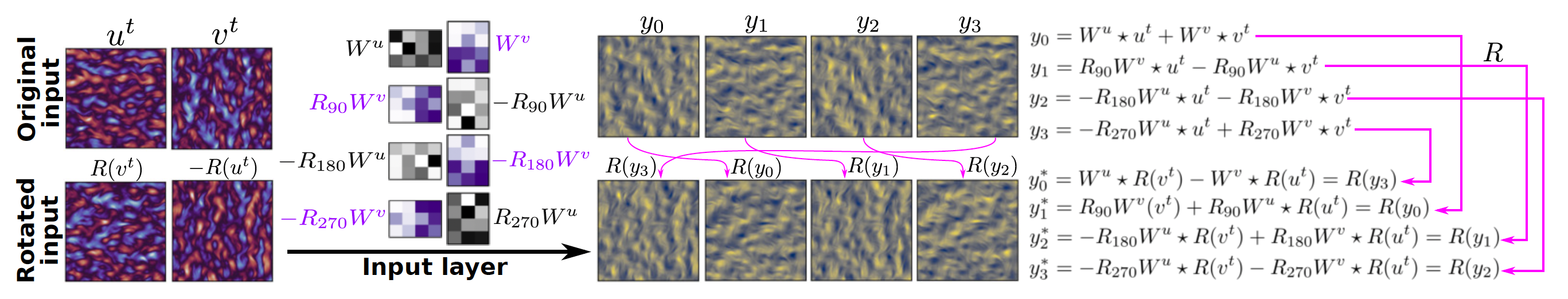

Action of rotation-equivariant input layer on staggered velocity
fields (top left). The filter bank is transformed by each g ∈ G to compute a G-indexed regular
representation y. Rotation-transforming inputs (bottom left) yields permuted, rotated output channels.

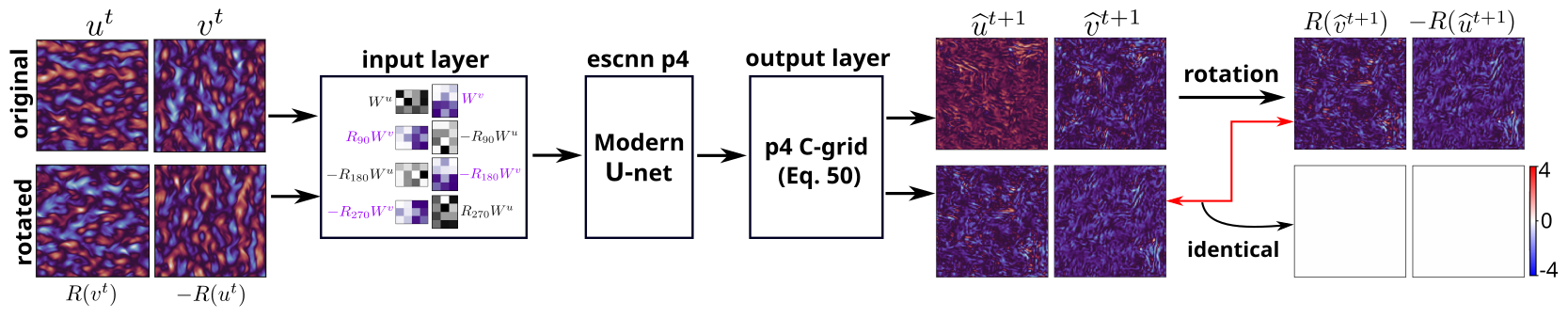

Equivariance of neural PDE surrogates with specialized input
layers for C-grid velocity fields. The networks used the same modern u-net architecture
and the networks were tested for equivariance in a randomly initialized state, without any training.
Experiments - 2D Shallow Water System
The shallow water equations (SWEs) are widely utilised to describe quasi-static motion in a homogeneous
incompressible fluid with a free surface. The focus of this study is nonlinear SWEs in momentum-
and mass conservative form. The intricacies of the formulations can be found in our
paper!
We first trained and evaluated neural surrogates for the SWE task. We followed a hybrid learning strategy,
based on the observation that the semiimplicit numerical integration scheme calculates ζt+1
slowly with an iterative solver, but then calculates [ut+1, vt+1] given ζt+1
quickly through a mathematical formula. We therefore trained surrogates to predict only ζt+1, and
calculat [ut+1, vt+1]. Keeping parameter counts constant, we compared networks
equivariant to 3 symmetry groups: p1 (translation only, as in standard CNNs), p4 (translation-rotation)
and p4m (translation-rotation-reflection). We also compared mass conserving networks (M) to those without
physical constraints (∅). Moreover, a comparison was made with unconstrained FNO and drnet architectures.
The primary results are presented in the following figure and table.

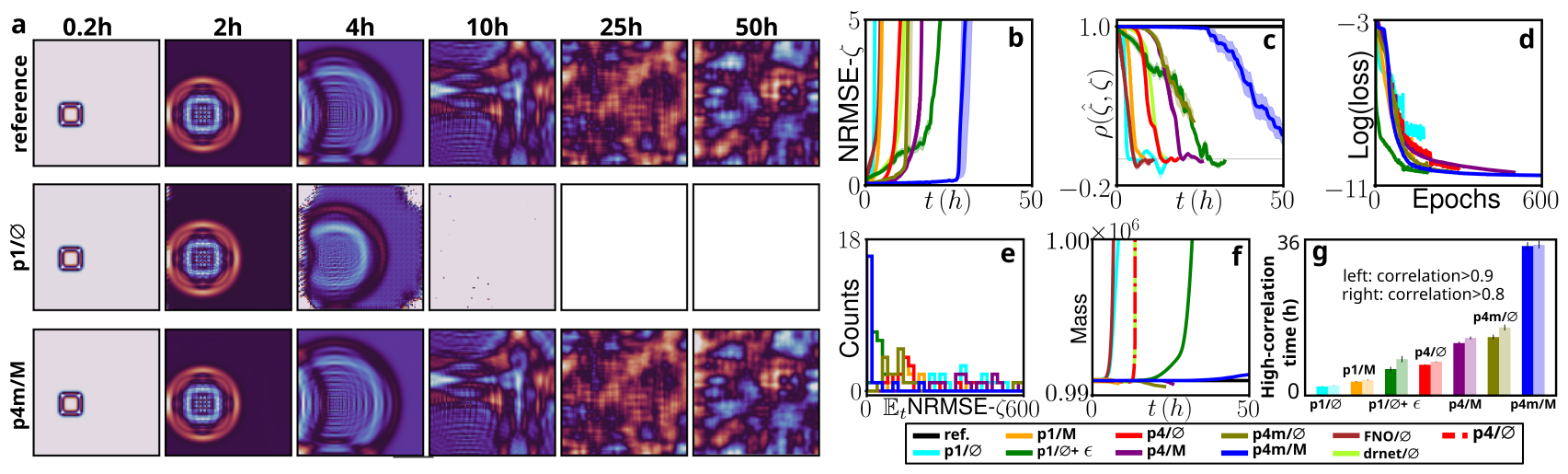

p4m/M outperforms other
networks with similar parameter counts on SWEs. (a) Reference surface disturbance ζ with
predictions from p1/∅ and p4m/M. (b-c) Accuracy over 50h rollouts, with standard error of the
mean over 20 ICs. (d) Training loss over iterations. (e) Histogram of EtNRMSE over 20 ICs.
(f) Violation of mass conservation for all methods.
(g) High correlation times for each model.

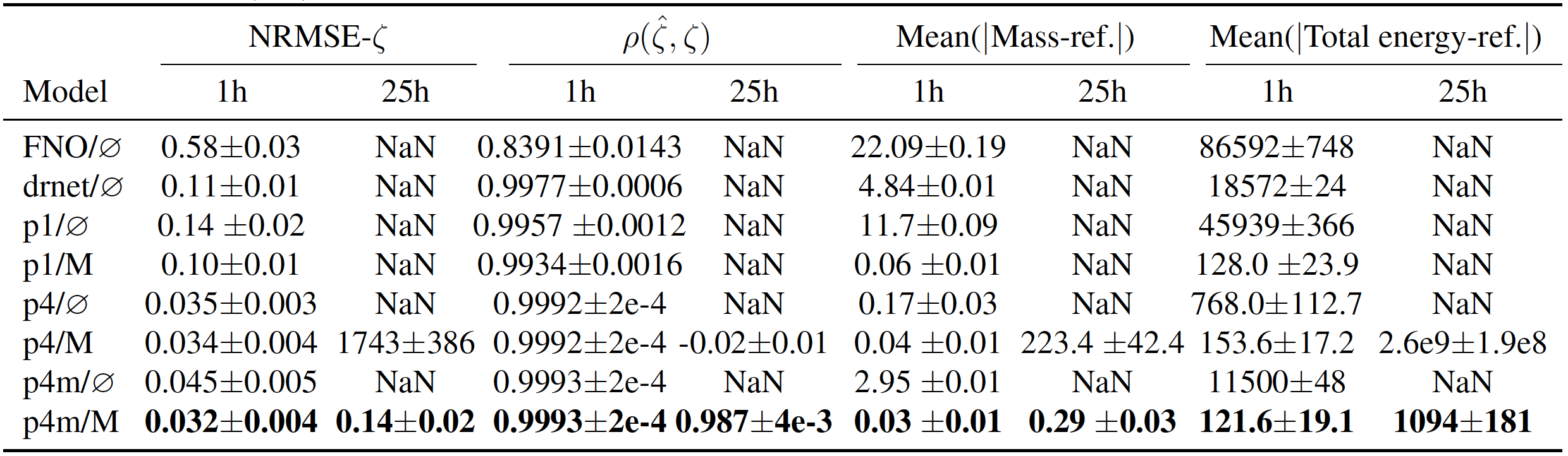

The NRMSE-ζ, correlation, the mean of the
absolute errors in mass, and the total energy for SWE surrogates obtained
from all methods at 1h and 25h.
In the subsequent phase of the study, an investigation was conducted into the potential for
generalisation to novel ICs for closed shallow water systems. Figure shows an example in which
these rectangles have combined to form an ‘L’ shape which is a sum of two rectangular elevations 0.1 m in
height, with randomly varying location and shape. As previously, we found the maximally constrained
model p4m/M to outperform alternatives with equal parameter counts. Additional generalization results can
be found in our paper!

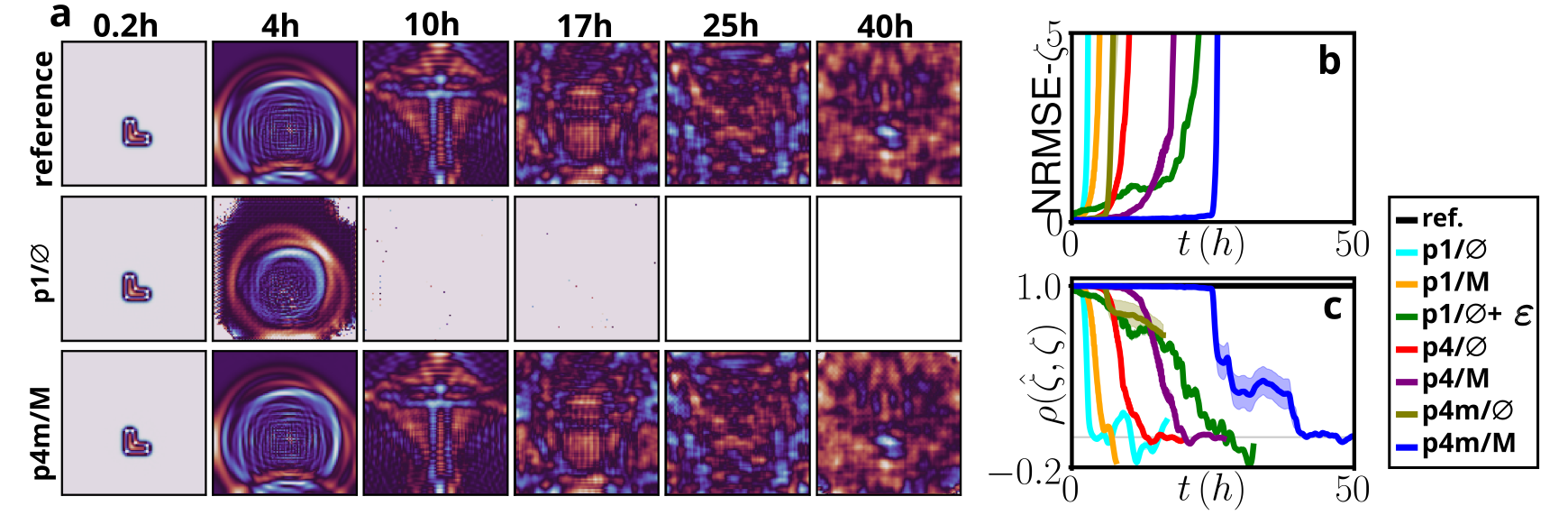

Generalization beyond training data for closed shallow water systems.
(a) SWE rollouts from p1/∅ and p4m/M on L-shaped ICs are compared to reference.
(b-c) Accuracy of each network over six
generalization tests.
Experiments - 2D Decaying Turbulence
The incompressible Navier–Stokes equations (INS) describe momentum balance for incompressible Newtonian fluids.
we consider the ‘decaying turbulence’ scenario introduced by (Kochkov et al., 2021). The velocity field is
initialized as filtered Gaussian noise containing high spatial frequencies. Predicting the evolution
of the velocity field is challenging, since eddy size and Reynolds number change over time as structures
in the flow field coalesce, and the velocity field becomes smoother and more uniform over time.
Here we used the velocity fields [u, v] as both inputs and outputs. As for SWEs, we tested p1, p4 and p4m
equivariance, but now considered 3 levels of physical constraints: unconstrained (∅), momentum conservation
(ρ)
and mass/momentum conservation (M+ρ).
Following Figure compares autoregressive rollouts from unconstrained (p1/∅) and maximally constrained networks
(p4m/M+ρ). We observed improvements
in the accuracy and stability of the INS surrogates for both types of constraints (see Fig. b–c).
The best results also outperformed those of networks trained with input noise.
To evaluate the performance of the neural surrogates beyond the point at which their predictions
diverge from the reference solution, we compared the power spectra of the predicted and energy
velocity fields as in previous studies. Furthermore,
we compared the performance gains from symmetries and physical constraints with those offered
by specialised training modes for PDE surrogates, such as data augmentation and pushforward.
See the following figures and tables for details.

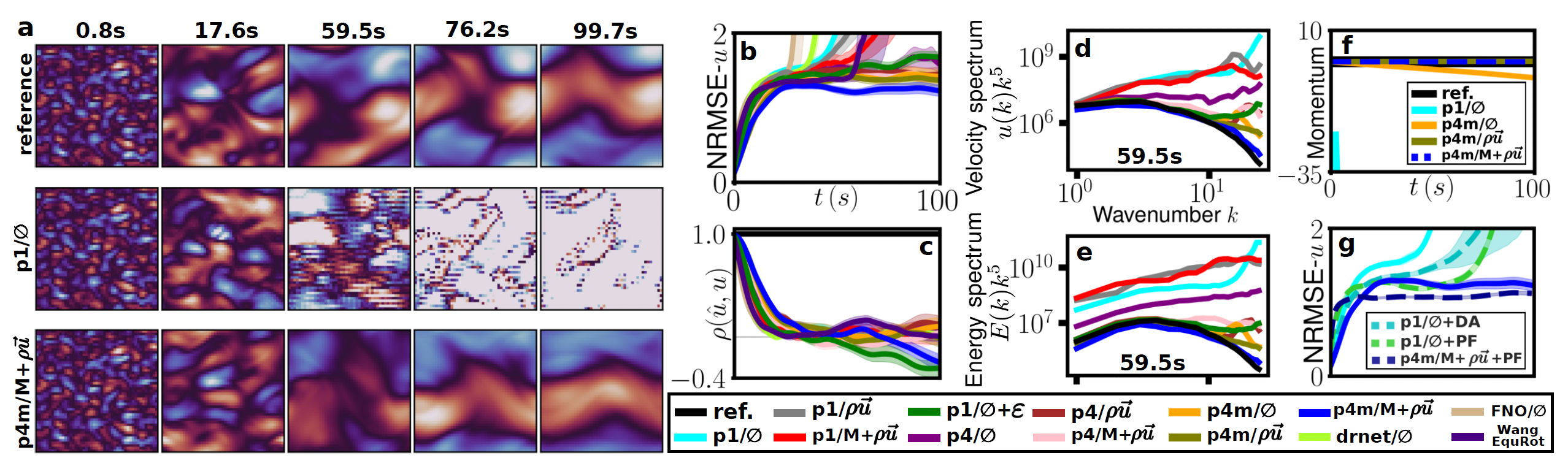

p4m/M+ρ outperforms other networks with similar
parameter counts on INS. (a) Reference horizontal velocity with predictions
from p1/∅ and p4m/M+ρ. (b-c) Accuracy over 50h rollouts,
with standard error of the mean over 30 ICs. (d-e) Log-log plots of the average velocity power
spectrum and energy spectrum from 30 ICs at 59.5s. Spectra measure the strength of the chaotic
field’s features for each wavenumber k (number of cycles across the domain). Both the velocity
and energy spectra p4m/M+ρ align best with the reference.
Spectra are scaled by k5. (f) The momentum during the entire evolution time for p1/∅
and all p4m models. (g) Comparison of
data-augmentation (DA) and pushforward trick (PF).

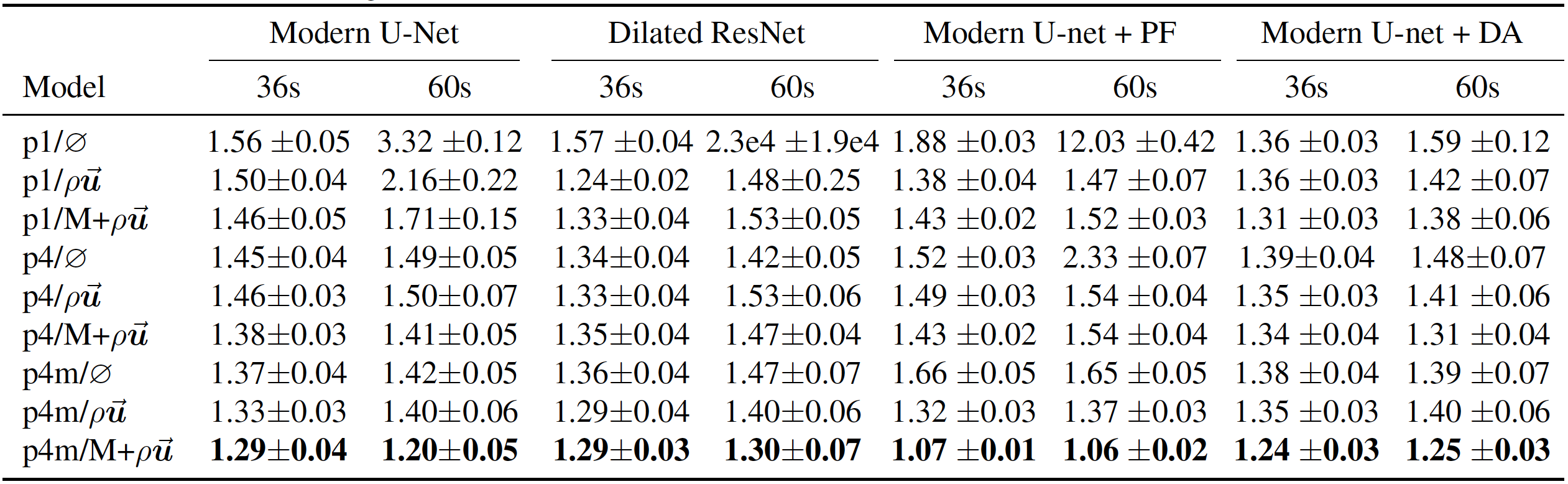

The NRMSE-u of decaying turbulence at 36s
and 60s for Modern U-net, DilResNet, Modern U-net with pushforward trick (PF) and Modern U-net with data
augmentation (DA).
We tested surrogates on ICs with peak wavenumber changed from 10 to 8 or 6.
p4m/M+ρ rollouts more
closely matched the reference solver and its spectra, see the following figures.

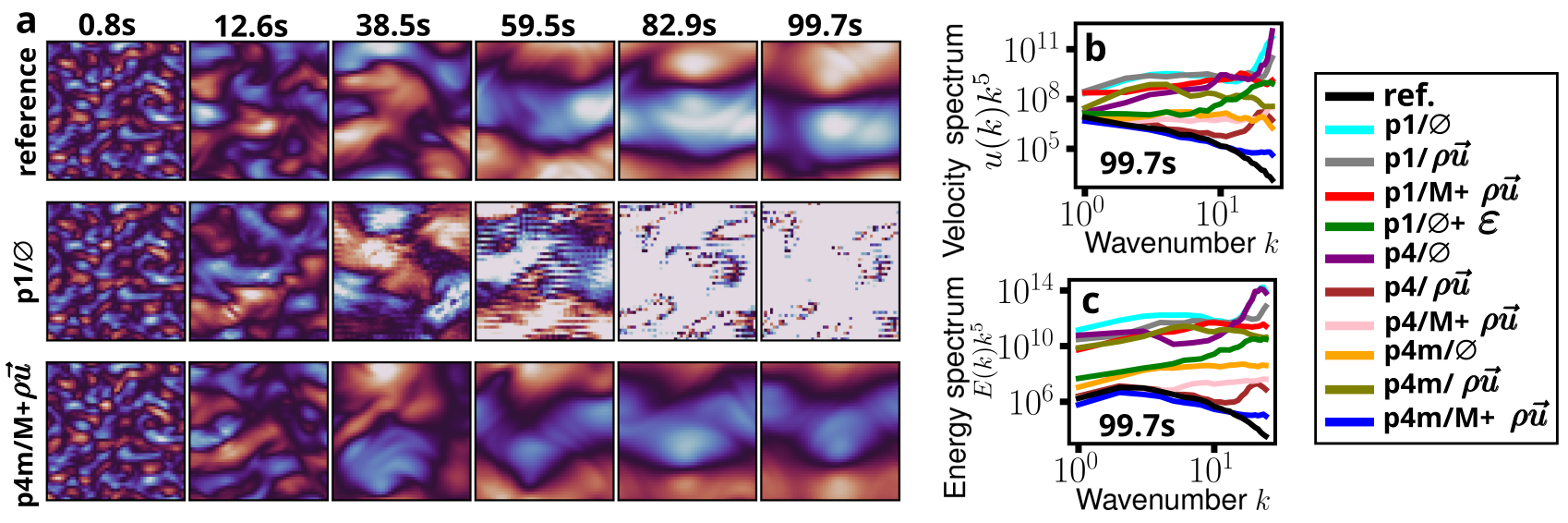

Generalization beyond training data for decaying turbulence.
Generalization beyond training data. (a) INS rollouts from p1/∅ and
p4m/M+ρ on ICs with peak wavenumber of 8.
(b-c) Velocityand energy spectra for INS at t = 99.7 s, averaged over 10 ICs.
We investigated how the enhancement of neural INS surrogates by symmetry physical constraints depends
on the size of the network and dataset. We trained p1/∅ and p4m/M+ρ networks with 0.1M, 2M and and 8.5M
parameters on the same dataset (100 simulations). Training 0.1M-parameter p1/∅ and
p4m/M+ρ networks on
datasets of 100, 400, and 760 simulations showed that constraints enhanced performance robustly across
dataset size, see details in following figures.

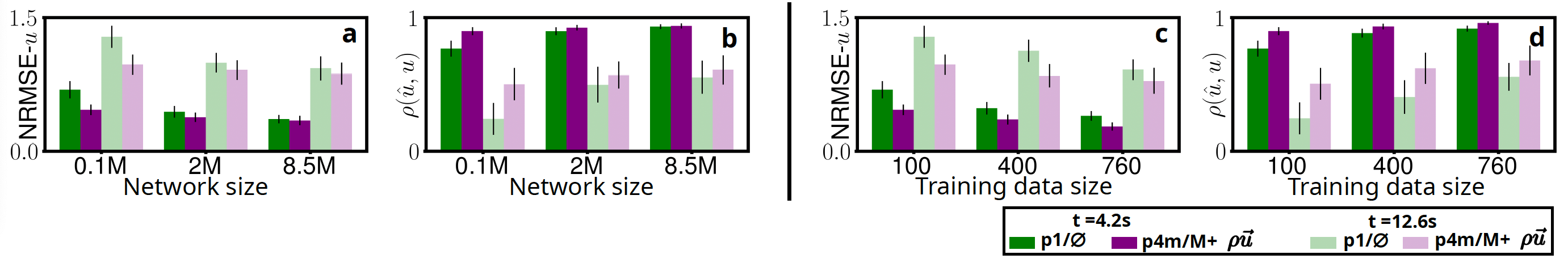

Accuracy of symmetry- and physics-constrained INS models
across data and network sizes, at 4.2 and 12.6 s. (ab) NRMSE-u and correlation vs. network size
for p1/∅ and p4m/M+ρ. (c-d) NRMSE-u and correlation
for p1/∅ and p4m/M+ρ vs. training datasets size.
Experiments - Real Ocean Dynamics
The ocean current velocity data has been sourced from
Global Ocean Physics Analysis and Forecast. The 6-hourly data from 2022-06-01 to 2025-04-05 was
selected for analysis in three regions from different oceans. The corresponding latitude and longitude
ranges for these regions are listed below: (30∼42, 168∼180), (-49∼-37, 80∼92), and (-51∼-39, -30∼-18).
The data set under consideration is 144×144. In order to reduce the size of the training set, it is
downscaled to a coarse grid of 48×48 for training, testing and validation purposes.
Once the training of the model has been completed, the prediction is made using distinct regions and times
from the training data. The latitude and longitude ranges of the prediction are specified as (-44∼-32, -130∼-118),
and the time frame for the prediction is from 2023-06-01 to 2025-04-05.
The figure below provides a visual representation of the specifics.

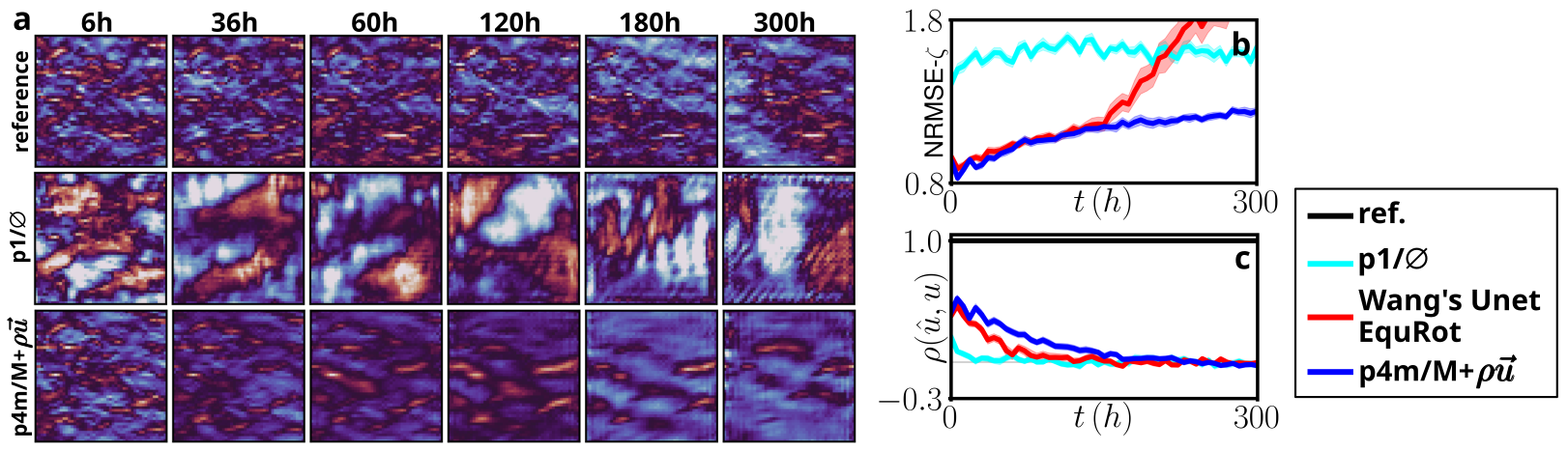

Accuracy of neural PDE surrogates for real world ocean currents.
Results are shown for the unconstrained Modern U-net p1/∅, Wang’s Equrot (Unet),
and the doubly constrained network p4m/M+ρ. (a) Zonal ocean currents from the
three surrogates
reference data. (b-c) NRMSE-u and correlation for forecasts up to 300 hours in the future,
averaged over 30 randomly selected initial conditions.
Furthermore, the following table shows the details of the comparison of nRMSE for zonal velocity, energy
spectrum error (ESE) and the correction for real ocean currents, as predicted for 12 and 120 hours.
Comparison of nRMSE for zonal velocity,
energy spectrum error (ESE), and correction for real ocean currents predicted 12h and 120h ahead.
Architecture and hyperparameters for Equrot Unet are as described in Wang’s Equrot (Unet).
Video Presentation

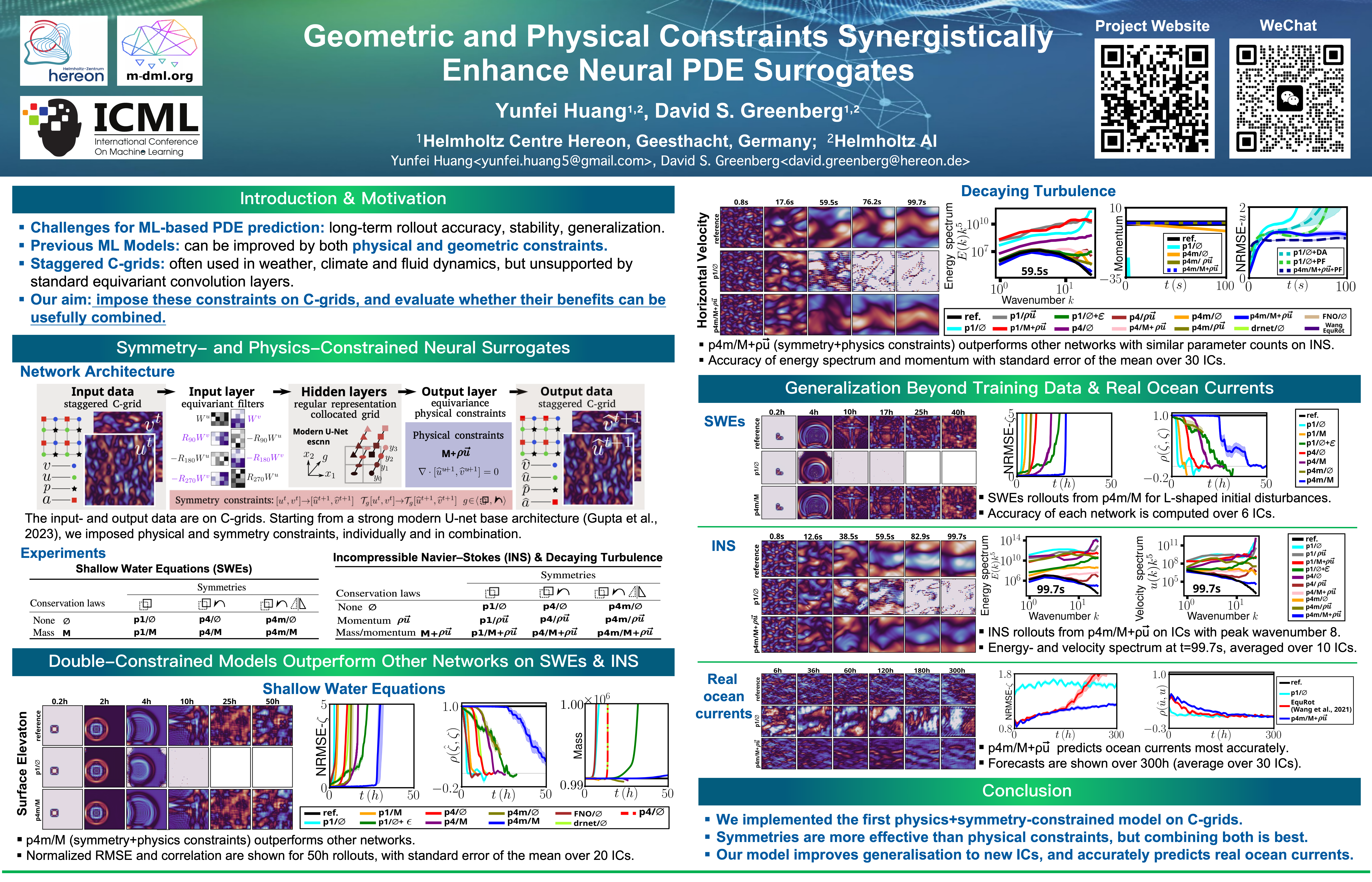

Poster
BibTeX
@inproceedings{huang2025geometric,
title={Geometric and Physical Constraints Synergistically Enhance Neural PDE Surrogates},
author={Huang, Yunfei and Greenberg, David},
booktitle={International conference on machine learning},
year={2025},
organization={PMLR}
}
